Ideal Diode

This ideal diode switch provides an exceptionally low forward voltage drop, low quiescent current (IQ), and ultra-low shutdown current (ISD). It serves as an efficient alternative to conventional or Schottky diodes, reducing power loss and improving overall system efficiency.

Product Name
VIN Voltage[V]
IOUT Rating [A]
Vdrop Typ.@ Iout Max[mV]
IQ Typ.@ Vin Max[uA] @5.5V
Short Circuit Current Detection Isc [A]
Reverse Current @ ON @ OFF [nA]
Reverse Bias Turn-off Delay time TRB [US]
ESD [KV]
Package   Type

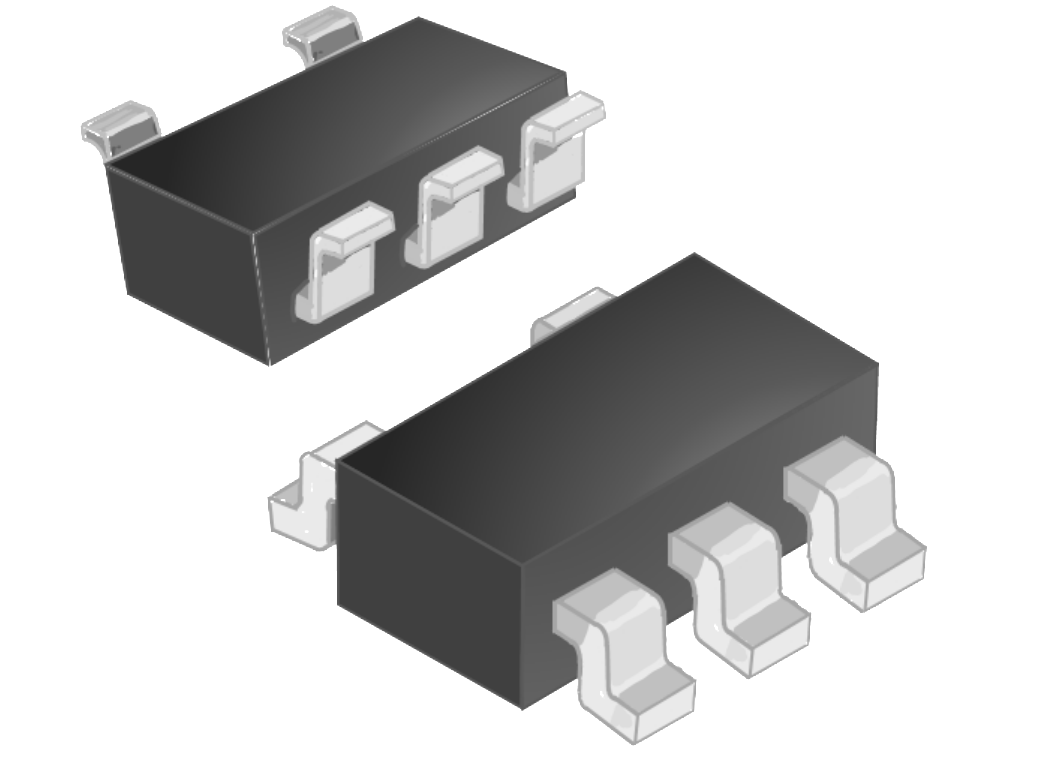

GLF1800A 1.8-5.5 1 117 1.2 2.6 2 12 HBM :4 CDM :2 SOT23-5L
GLF1800AT 1.8-5.5 1.5 111 1.2 2.6 2 12 HBM :4 CDM :2 WLCSP 0.77 x 0.77 x 0.35
GLF1800 1.8-5.5 1 117 1.2 2.6 2 12 HBM :4 CDM :2 SOT23-5L
GLF1800T 1.8-5.5 1.5 111 1.2 2.6 2 12 HBM : 4 CDM : 2 WLCSP 0.77 x 0.77 x 0.35
