240 nA IQ, Low-Dropout Linear Regulator
Output Current：GLF9900-33T3 up to 200 mA
Ultra-Low Quiescent Current：IQ: 240 nA Typ at no load
Output Voltage fixed 3.3 V
Output Voltage Accuracy：± 2.5 %
Low Dropout：144 mV Typ at 100 mA ; 334 mV Typ at 200 mA ; 600 mV Typ at 300 mA
Over Current Protection and Current Foldback
Short Circuit Protection
Thermal Shutdown Protection
Compatible with Ceramic Capacitor
The GLF9900 are an ultra-low power and low dropout regulator designed for battery powered smart devices.
The GLF9900 provide up to 300 mA output current with typical quiescent current of only 240 nA. The GLF9900 features an over current protection by limiting output current. When the output of the device is shorted, the output current is limited to preset level and the thermal shutdown prevents the device from the thermal runaway.
The GLF9900 is available in SOT23-5L, SOT23-3L packages.

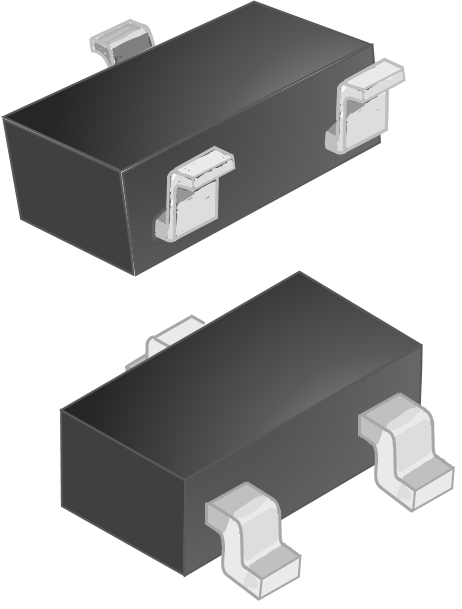

SOT23-3L
