GLF2311A-T1G7

High Precision Current Limit Power Switch

Request Samples

(~2.9mm) X (~2.8mm)
~1.1mm thick
SOT23-5L

Features

  • Input Range: 2.5 V to 5.5 V
  • Programmable Output Constant Current Limit:
    • Range: 40 mA ~ 2.1 A
  • Low RON : 56mΩ Typ @ 5.0VIN
  • Ultra-Low IQ: 20 µA Typ. @ 5.0 VIN
  • Ultra-Low ISD: 50nA Typ @ 5.0VIN
  • Under Voltage Lockout Protection
  • Output Voltage Slew Rate Controlled
  • True Reverse Current Blocking Protection
  • Short Circuit Protection
  • Deglitched Fault Flag Indication
  • Thermal Shutdown Protection
  • IEC 62368-1:2018 CB Certification No. FI-52066

Applications

  • USB ports
  • Notebooks
  • Set-Top Boxes
  • Telecom Systems

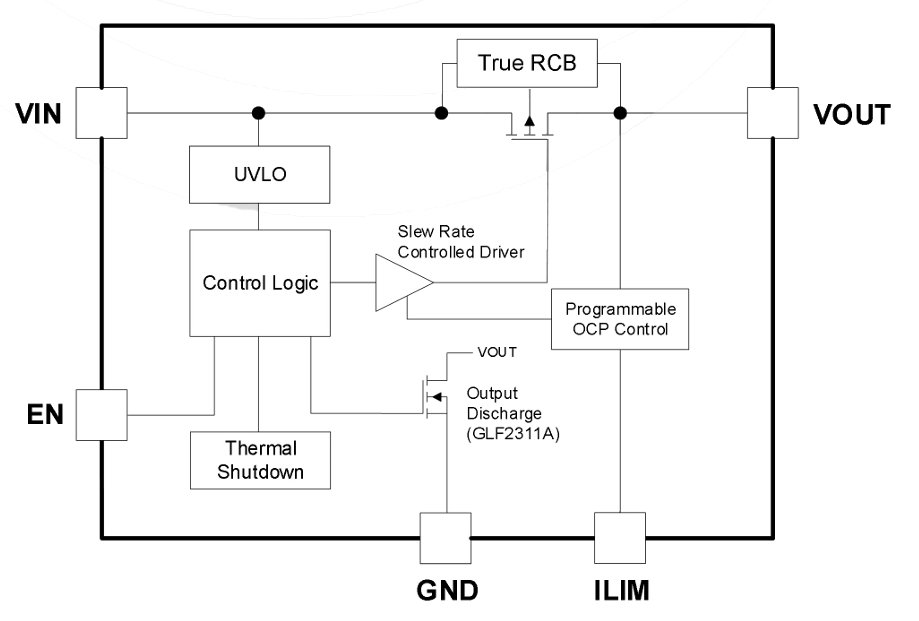

FUNCTIONAL BLOCK DIAGRAM

GLF 71311 schematic

APPLICATION SCHEMATIC

GLF23xx Application schematic 2022

PRODUCT DESCRIPTION

The GLF2311A-T1G7 is an advanced technology fully integrated power switch for applications required for precision output current limiting. The GLF2311A-T1G7 features also various protection functions such as under voltage lockout, true reverse current blocking (TRCB), short circuit protection, and thermal shutdown.

The GLF2311A-T1G7 provides a built-in output voltage slew rate control to limit the inrush current and voltage surges. The FLGB output pin can be used to send a signal of fault events to the system controller. The integrated thermal shutdown (TSD) insures complete protection for the switch during output current limit and short circuit conditions. The GLF2311A-T1G7 is an ideal switch for USB power supply.
