GLF2321B-T1G7
High Precision Current Limit Power Switch

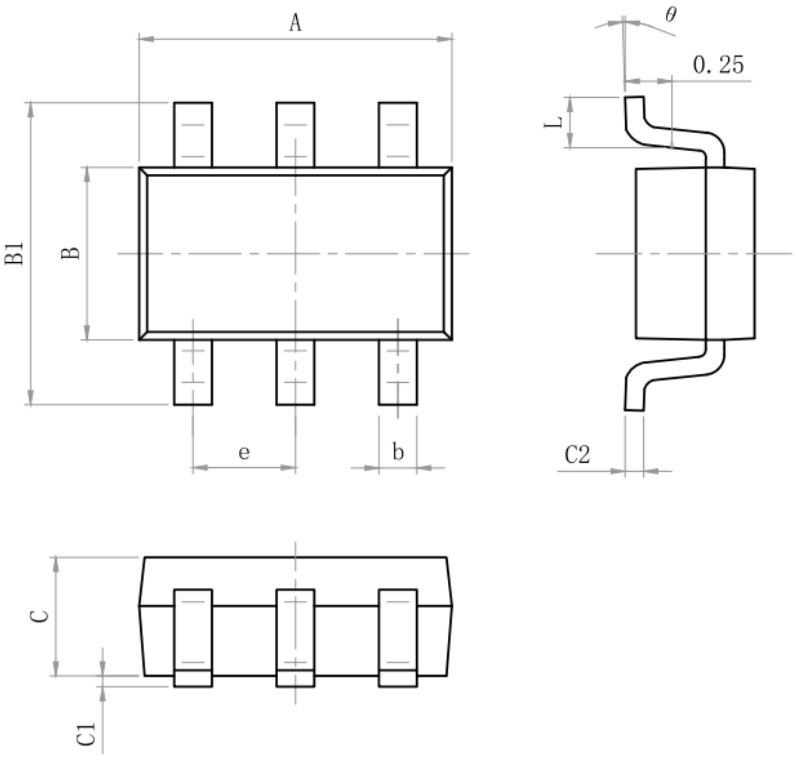

(~2.9mm) X (~2.8mm)
~1.1mm thick

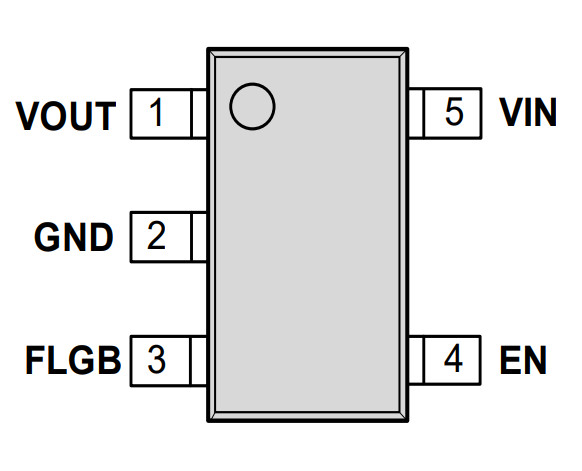

SOT23-5L
Features
- Input Range: 2.5 V to 5.5 V
- Programmable Output Constant Current Limit:
- Fixed: 1.8 A
- Low RON : 56mΩ Typ @ 5.0VIN
- Ultra-Low IQ: 20 µA Typ. @ 5.0 VIN
- Ultra-Low ISD: 50nA Typ @ 5.0VIN
- Under Voltage Lockout Protection
- Output Voltage Slew Rate Controlled
- True Reverse Current Blocking Protection
- Short Circuit Protection
- Deglitched Fault Flag Indication
- Thermal Shutdown Protection
- IEC 62368-1:2018 CB Certification No. FI-52066
Applications
- USB ports
- Notebooks
- Set-Top Boxes
- Telecom Systems
FUNCTIONAL BLOCK DIAGRAM
APPLICATION SCHEMATIC
PRODUCT DESCRIPTION
The GLF2310, GLF2311, and GLF2321 are an advanced technology fully integrated power switch for applications required for precision output current limiting. The GLF2310, GLF2311, and GLF2321 feature also various protection functions such as under voltage lockout, true reverse current blocking (TRCB), short circuit protection, and thermal shutdown.The GLF2310A-T2G7 provides a built-in output voltage slew rate control to limit the inrush current and voltage surges. The FLGB output pin can be used to send a signal of fault events to the system controller. The integrated thermal shutdown (TSD) insures complete protection for the switch during output current limit and short circuit conditions. The GLF2310A-T2G7 is an ideal switch for USB power supply.
The GLF2310, GLF2311, and GLF2321 provide a built-in output voltage slew rate control to limit the inrush current and voltage surges. The FLGB output pin can be used to send a signal of fault events to the system controller. The integrated thermal shutdown (TSD) insures complete protection for the switch during output current limit and short circuit conditions. The GLF2310, GLF2311, and GLF2321 are an ideal switch for USB power supply.
