GLF2351A-S3G7
High Precision Programmable Current Limit Power Switch

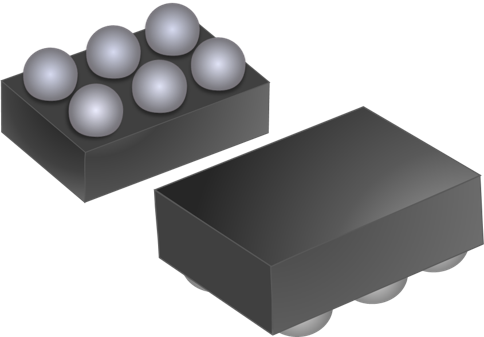

0.97mm x 1.47mm
0.55mm thick
0.5mm pitch
6 bump
WLCSP
Features
- Input Range: 2.5 V to 5.5 V
- Programmable Output Constant Current Limit Range:
- 40 mA to 2.8 A
- Low RON: 32 mΩ Typ. at 5.0 VIN
- Ultra-Low IQ: 19 µA Typ. at 5.0 VIN
- Ultra-Low ISD: 63 nA Typ. at 5.0 VIN
- Under Voltage Lockout Protection
- Output Voltage Slew Rate Controlled
- True Reverse Current Blocking Protection
- Short Circuit Protection
- Deglitched Fault Flag Indication
- Integrated Output Discharge Switch
- Thermal Shutdown Protection
Applications
- Notebooks and Tablets
- Wireless LAN and Broadband Access Devices
- Storage and Peripherals
- Smart Mobile Devices

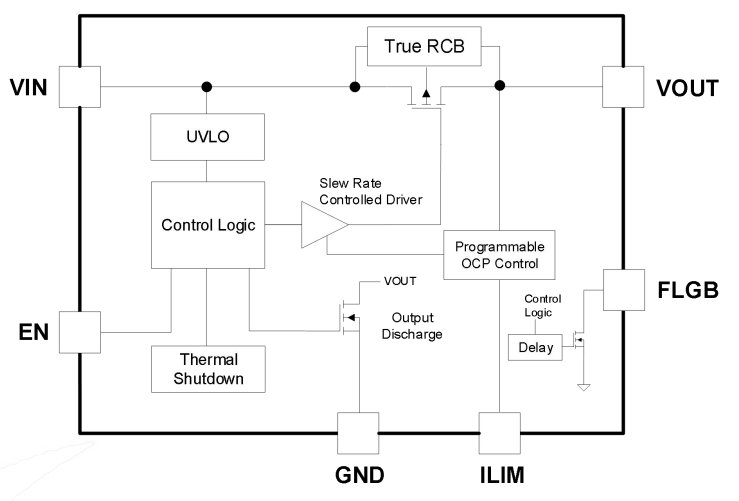

FUNCTIONAL BLOCK DIAGRAM

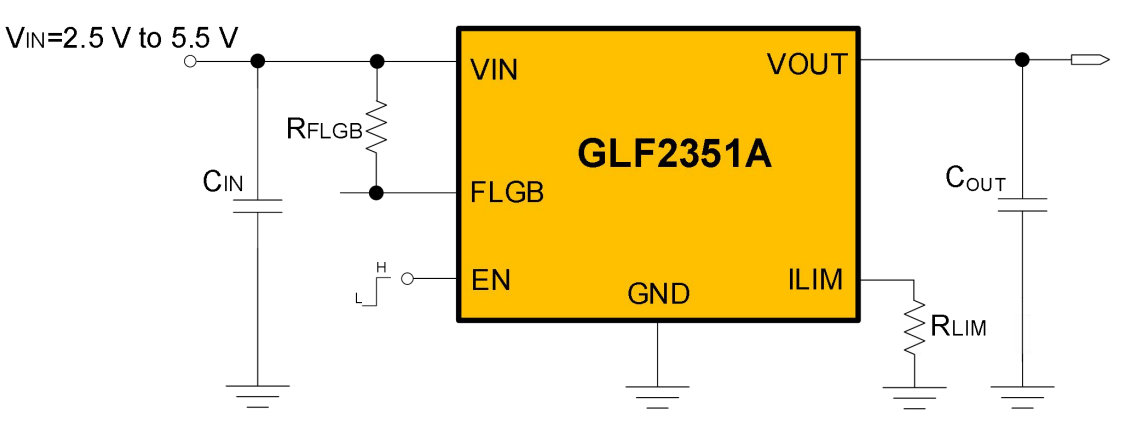

APPLICATION SCHEMATIC
PRODUCT DESCRIPTION
The GLF2351A is an advanced technology fully integrated power switch for applications required for precision output current limiting. The GLF2351A also features various protection functions such as under voltage lockout, true reverse current blocking (TRCB), short circuit protection, and thermal shutdown.
The GLF2351A provides a built-in output voltage slew rate control to limit the inrush current and voltage surges. The FLGB output pin can be used to send a signal of fault events to the system controller. The integrated thermal shutdown (TSD) insures complete protection for the switch during output current limit and short circuit conditions. The GLF2351A is an ideal switch for USB power supply.
