GLF2351B-T1G7
2.5 A, High Precision Current Limit Power Switch
(~2.9mm) X (~2.8mm)
~1.1mm thick

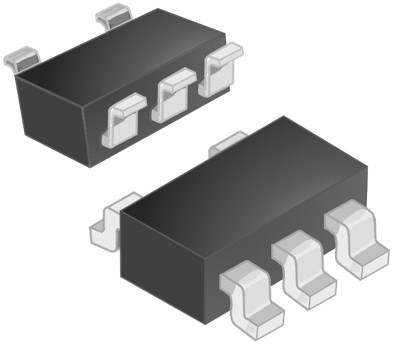

SOT23-5L
Features
- Input Range: 2.5 V to 5.5 V
- Fixed Constant Output Current Limit, 2.5ATyp
- Low RON: 40 mΩ Typ. at 5 VIN
- Ultra-Low IQ: 17 μA Typ. at 5 VIN
- Ultra-Low ISD: 60 nA Typ. at 5 VIN
- Under Voltage Lockout Protection
- Output Voltage Slew Rate Control
- True Reverse Current Blocking Protection
- Short Circuit Protection
- Deglitched Fault Flag Indication
- Integrated Output Discharge Switch
- Thermal Shutdown Protection
Applications
- USB ports
- Notebooks
- Telecom Systems
PRODUCT DESCRIPTION
The GLF2351B is an advanced technology fully integrated power switch for applications required precision output current limiting. The GLF2351B features also various protection functions such as under voltage lockout, true reverse current blocking (TRCB), short circuit protection, and thermal shutdown.
The GLF2351B provides a built-in output voltage slew rate control to limit the inrush current and voltage surges. The FLGB output pin can be used to send a signal of fault events to the system controller. The integrated thermal shutdown (TSD) insures complete protection for the switch during output current limit and short circuit conditions. The GLF2351B is an ideal switch for USB power supply.
