GLF1401-D3G7
6 A Dual Channel Programmable Slew Rate Power Switch

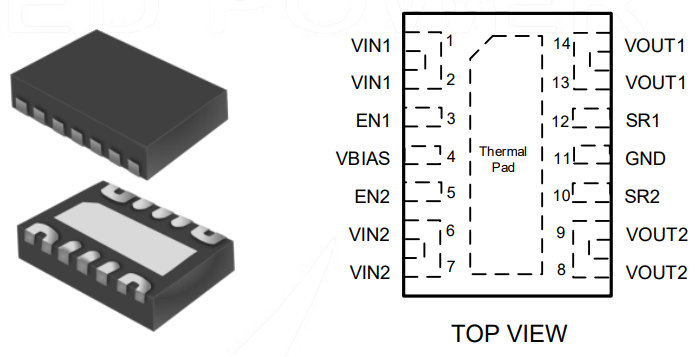

2mm X 3mm
DFN 2 x 3 -14L
Features
- Input Voltage Range: 0.6 V to 5.5 V
- VBIAS Voltage Range: 2.5 V to 5.5 V
- 6 A Continuous Output Current Per Channel
- Low RON: 19 mΩ Typ. at VIN = VBIAS = 5 V
- Low Quiescent Current, IQ_BIAS
- 15 μA Typ. at VIN1 or 2 = VBIAS = 5 V, Single Channel
- 18 μA Typ. at VIN1 & 2 = VBIAS = 5 V, Both Channel
- Low Shutdown Current of VIN, ISD_VIN
- 8 nA Typ. at VIN = 5.5 V, Per Channel
- Programmable VOUT Rising Time
- Output Discharge Switch When Disabled
- Reverse Current Blocking Protection When Disabled
- Thermal Shutdown Protection
Applications
- Notebook and Computing Devices
- Communication / Network System
- Storage Devices
FUNCTIONAL BLOCK DIAGRAM

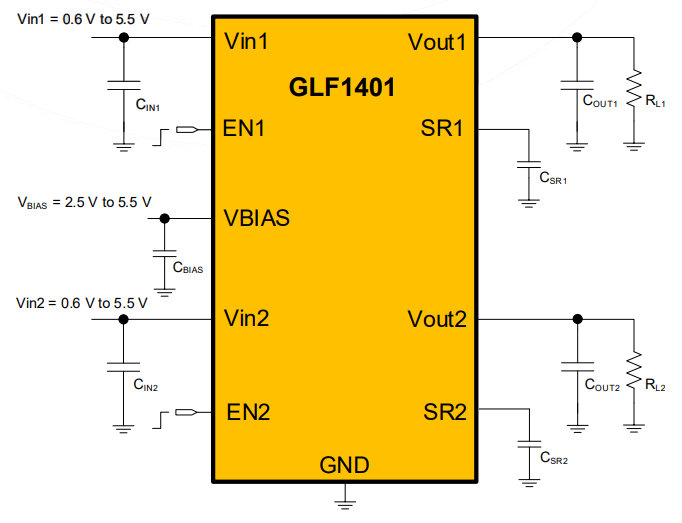

APPLICATION SCHEMATIC
PRODUCT DESCRIPTION
The GLF1401 is a dual channel integrated load switch with the VariRiseTM technology which provides the programmable slew rate of variable output voltage rising times.
The GLF1401 is a dual channel integrated load switch with the VariRiseTM technology which provides the programmable slew rate of variable output voltage rising times.
The SR input pin allows the user to add an external capacitor to set the slew rate of the switch output voltage to a specific value for a given output capacitance. It limits inrush currents during turn-on, helping to minimize voltage drop.
