GLF2201-D2G7
Power Switch with Over Voltage Protection
2 mm x 2 mm
DFN-6L
Features
- Wide Input Range 3V to 9V
- 15V Tolerance on VIN Pin
- Integrated Over Voltage Protection Threshold
- Internal Fixed 6.8 V Typ.
- Programmable OVP from 4V to10V
- IOUT Max: 3 A Output Current Capability
- Low RON: 42 mΩ Typ @5 VIN
- Low IQ: 77 μA @5 VIN
- Under Voltage Lockout
- Short Circuit Protection
- Active Low FLAGB Indication
- Thermal Shut Down Protection
- Internal 8 ms Recovery Delay after protection
Applications
- Smart Portable Devices
- Low Power Sub-systems

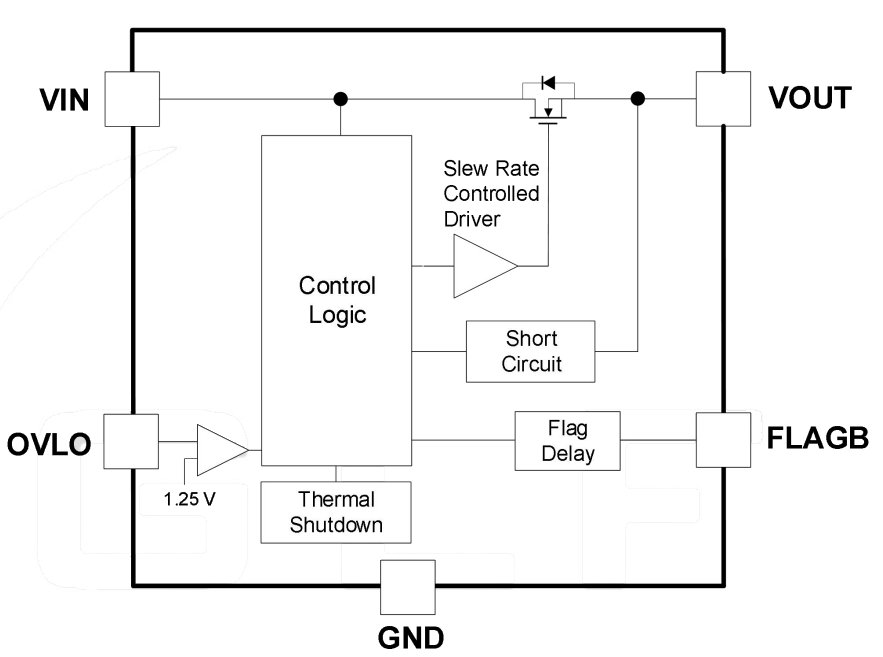

FUNCTIONAL BLOCK DIAGRAM

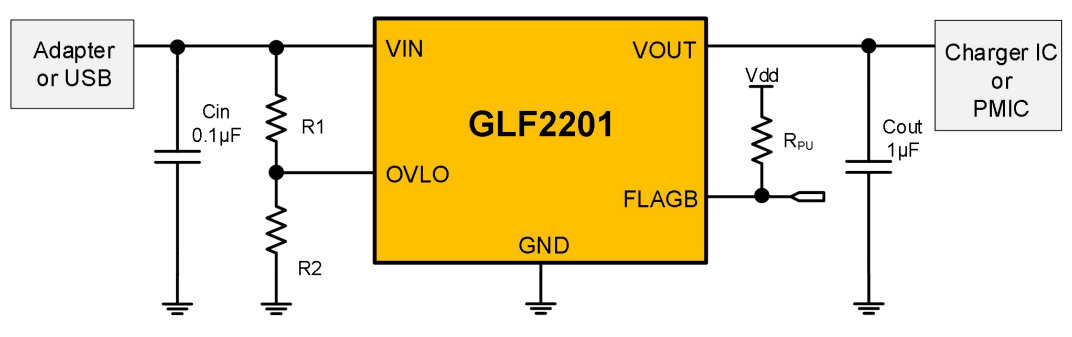

APPLICATION SCHEMATIC
PRODUCT DESCRIPTION
The GLF2201 is an integrated over voltage protection (OVP) power switch. It also features under voltage lockout, output short circuit and over temperature protection functions. The device has an internal fixed OVP threshold as well as a programmable one by the external resistor divider on an OVLO pin. When a higher voltage than the OVP threshold is applied, the internal main FET is turned off immediately to isolate low voltage powered systems from the input source. The GLF2201 turns back on after the input voltage becomes normal below the OVP threshold. The device has an internal 8 ms recovery time before the device resumes after fault conditions. The GLF2201 is available in the 2 mm x 2mm DFN package with 6 leads.
