Power Management Integrated Circuit with 3Bucks and 2 LDOs
AVIN input supply range：2.7V to 5.5V
Three buck regulators：BUCK1, output range 1.7V ~ 3.3V ; BUCK2, output range 0.9V ~ 2.0V ; BUCK3, output range 0.5V ~ 1.3V
2 linear regulators：LDO1, 1V ~ 3.3V, 50mV/Step, 0.4A ; LDO2, 1V ~ 3.3V, 50mV/Step, 0.4A
DCDC voltage accuracy：1% FB Voltage
BUCK1 can be set as load switch
LDO1/LDO2 can be set as load switch
Configurable Soft-start Time for All output
Configurable power on sequence
Configurable sleep and wake-up sequence
I2C Interface 400kHz/1MHz
Built-in AVIN OV/UV warning indication and fault protection
Built-in VOUT OVP/UVP/OCL
Built-in Overd Temperature Protection
Built-in EFUSE for configurable default value of registers
3 multifunctional IOs
The GLF70582 is a power management IC (PMIC) designed for notebook, desktop, and embedded computing platforms. There are three DCDC converters and two linear regulators integrated into the GLF70582, which can minimize the need for external components so that it can ease the layout in a constrained PCB area. The DCDC converters are of high accuracy, high efficiency, and high flexibility. Two LDOs provide power rails for peripherals and pull-up resistors.
The GLF70582 provides protection for a device when a fault occurs, such as overcurrent, output overvoltage, output undervoltage, short circuit, input overvoltage, and over temperature.

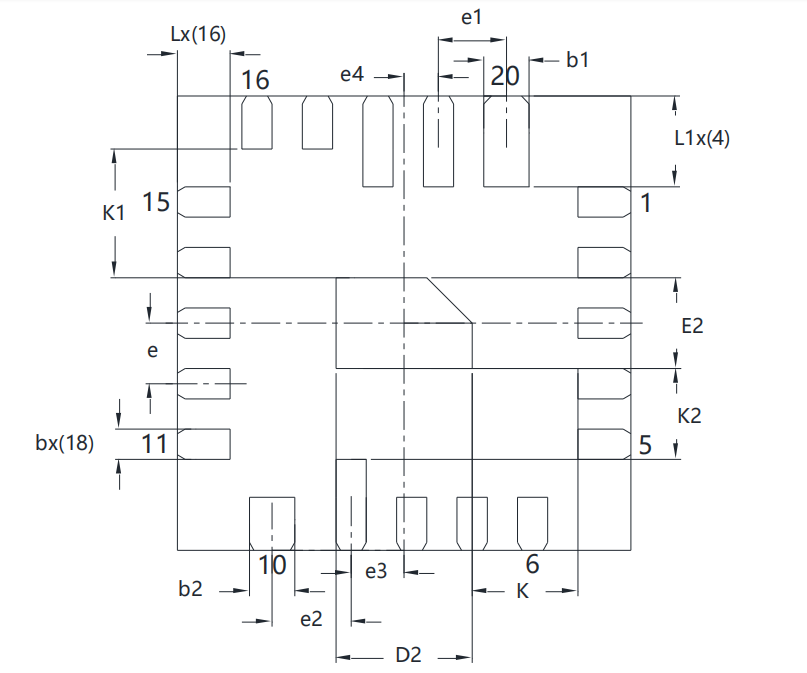

QFN 3 x 3 -20
