Ultra-low IQ, Asymmetrical Power Mux IC with Auto & Manual Input Selection
Two-Input and Single-Output Power Multiplexer IC
Auto and Manual Input Selection Mode
Wide Input Range：1.5 V to 5.5 V
Low RON：Channel 1, 20 mΩ Typ at 5.5 VIN ; Channel 2, 30 mΩ Typ at 5.5 VIN
IOUT Max：Channel 1 = 4.0 A at 2.0 VIN to 5.5 VIN ; Channel 1 = 3.5 A at 1.5 VIN to 2.0 VIN ; Channel 2 = 3.0 A at 1.5 VIN to 5.5 VIN
Ultra-Low Supply Current at Operation：IQ : 1.1 μA Typ at 5.5 VIN
Ultra-Low Shutdown Current：ISD : 550 nA Typ at 5.5 VIN
Reverse Current Blocking Protection
Operating Temperature Range：-40 °C to 85 °C
The GLF4007 is an integrated power multiplexer IC with dual independent power switches connected to a single output pin to enable seamless transition between two input sources. The GLF4007 features asymmetrical power FET characteristics. Channel 1 (VIN1) provides lower conduction resistance to support 4.0 A continuous current capability. The current rating of another channel (VIN2) is 3.0 A. It is an ideal solution for a power system with an internal back up power source.
The GLF4007 provides an automatic selection mode as well as a manual selection mode by the combination of the logic input pins of S1 and S2. The S1 input pin is used along with the S2 input pin to select the automatic switching function, select VIN1 only, select VIN2 only, or turn both switches off. In the automatic selection mode, the GLF4007 automatically select the higher input voltage source out of two input DC power supplies.

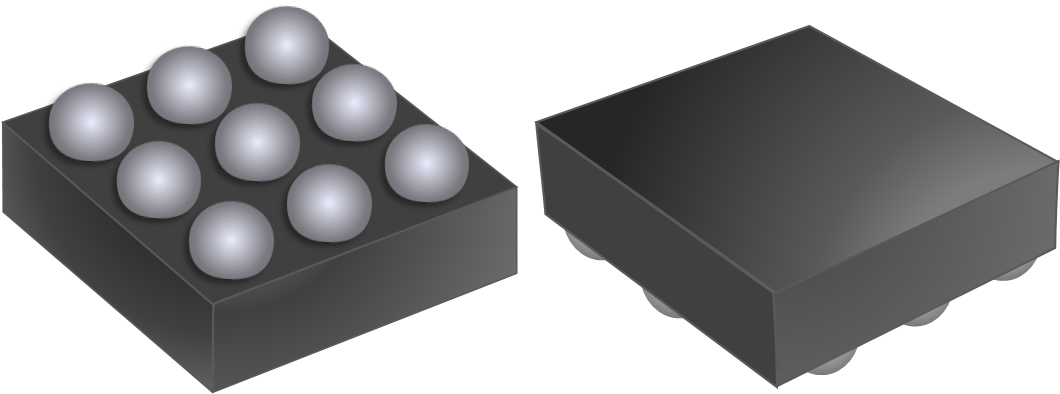

CSP 1.27 x 1.27 x 0.55
